Greenhouse: Under the polycarbonate

Polycarbonate siding on greenhouse

Polycarbonate siding on greenhouse

I’ve received a few emails from people curious to know more about the greenhouse.  When I started researching greenhouse options, I primarily looked at kits.  There are numerous online and catalogue retailers that sell all shapes and sizes of greenhouses.  I had an idea, however, for a structure that would be multi-purpose and I didn’t see any kits that were what I was looking for.  After doing some research, I found a plan for a passive solar greenhouseon the University of Missouri site.  The plan I saw there was very similar to a concept I had sketched out, plus the objective of the project was to make it low-energy using.  Intrigued, I called a local shed building company and was referred to Don Leikness, who ended up building the greenhouse for us.  Don did a great job and I enthusiastically recommend him (he can be reached at bleikness@aol.com).

Raised beds, hanging planters, and open sides

Raised beds, hanging planters, and open sides

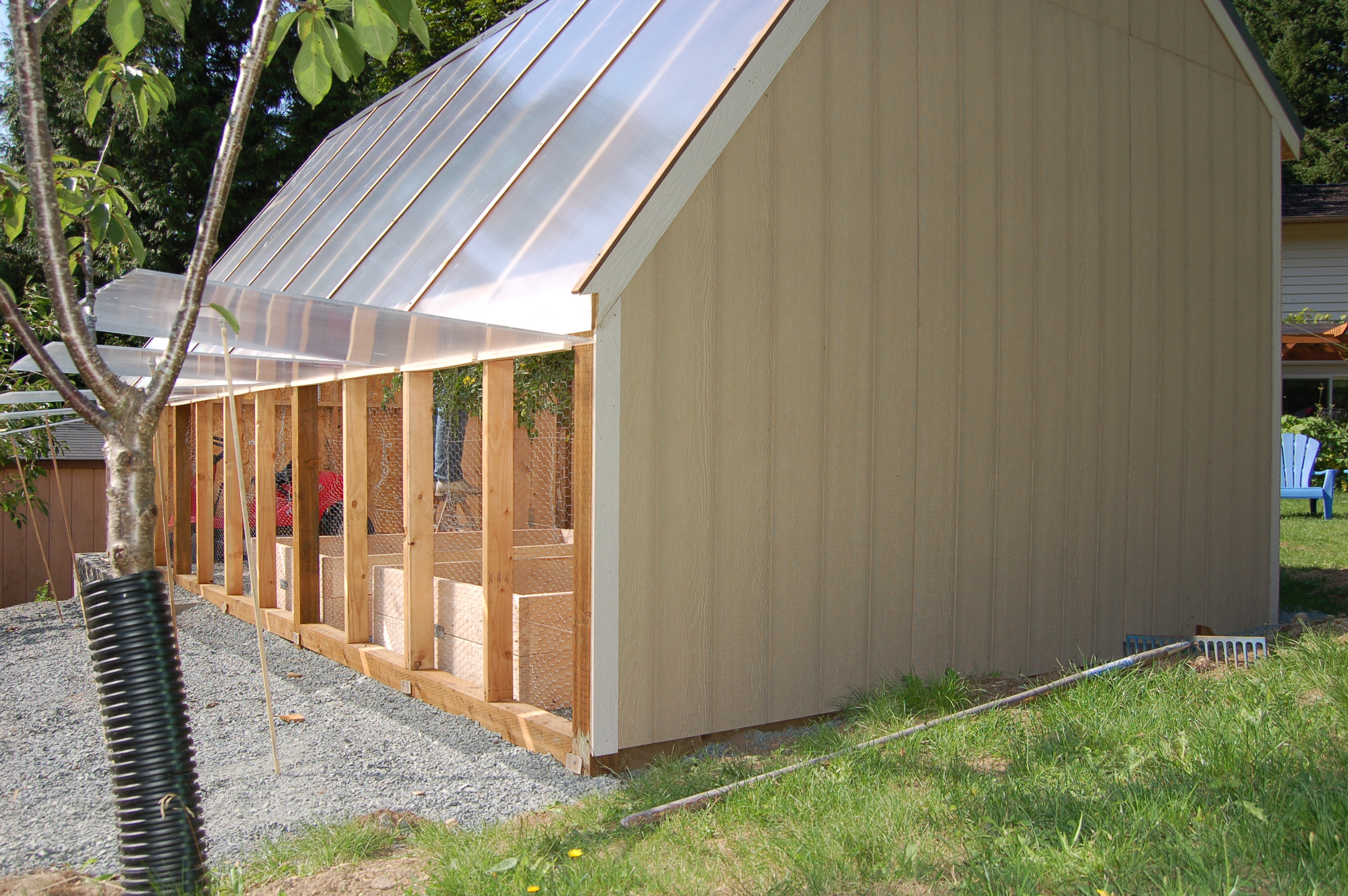

One of the things I like best about the greenhouse is that the sides open up.  This allows for great ventilation on the hottest days.  It’s hard to see, but we covered the openings with chicken wire.  We originally did this to use the greenhouse as a temporary chicken coop, but we decided that the wire is a good idea because it will keep bunnies out.  You can also see in the photo to the right that we have a number of hanging planters.  One advantage of the tall height of the structure is that it gives us plenty of space to hang plants.  Since our summer stalled out and the weather has been cool, I moved all our hanging planters into the greenhouse and they are thriving.  Also in this shot you can see the three raised beds Derek just built.  These are 4′ X 6′ X 15″ beds. I am having a load of soil delivered soon and will be planting a fall/winter crop. Along the back wall, you can also see that we are creating a space to hang garden tools.

Here I’ll hand it over to Derek to explain additional details of the project . . .

Structure and rafters

Structure and rafters

Framing is 2″x4″ Douglas fir studs set on a 4×4 pressure-treated sill.  The stud spacing is 2′ on center with ties at every 4′ (e.g. a bunch of 2’x4′ rectangles).  The sheathing is exterior-grade OSB (oriented-strand board – specifically LP Building Products 3/8″ Smart Side Panel).  The south (cripple) wall is 4′ tall, the north wall is 8′ tall and there is a 12′ ridge approximately 2/5 of the distance between the north and south walls.  The north-facing roof is corrugated (galvanized) metal over OSB.  We chose a metal roof for the reasons highlighted in our previous article on roofing.  The south-facing roof and south cripple wall are polycarbonate panels, which offer better durability and better insulation than the plastic used in the original U of M project.  The ceiling joists are 2x4s that tie from the top of the north wall to midway up the south roof framing (as seen below):

Heat sink pit and pipe

Heat sink pit and pipe

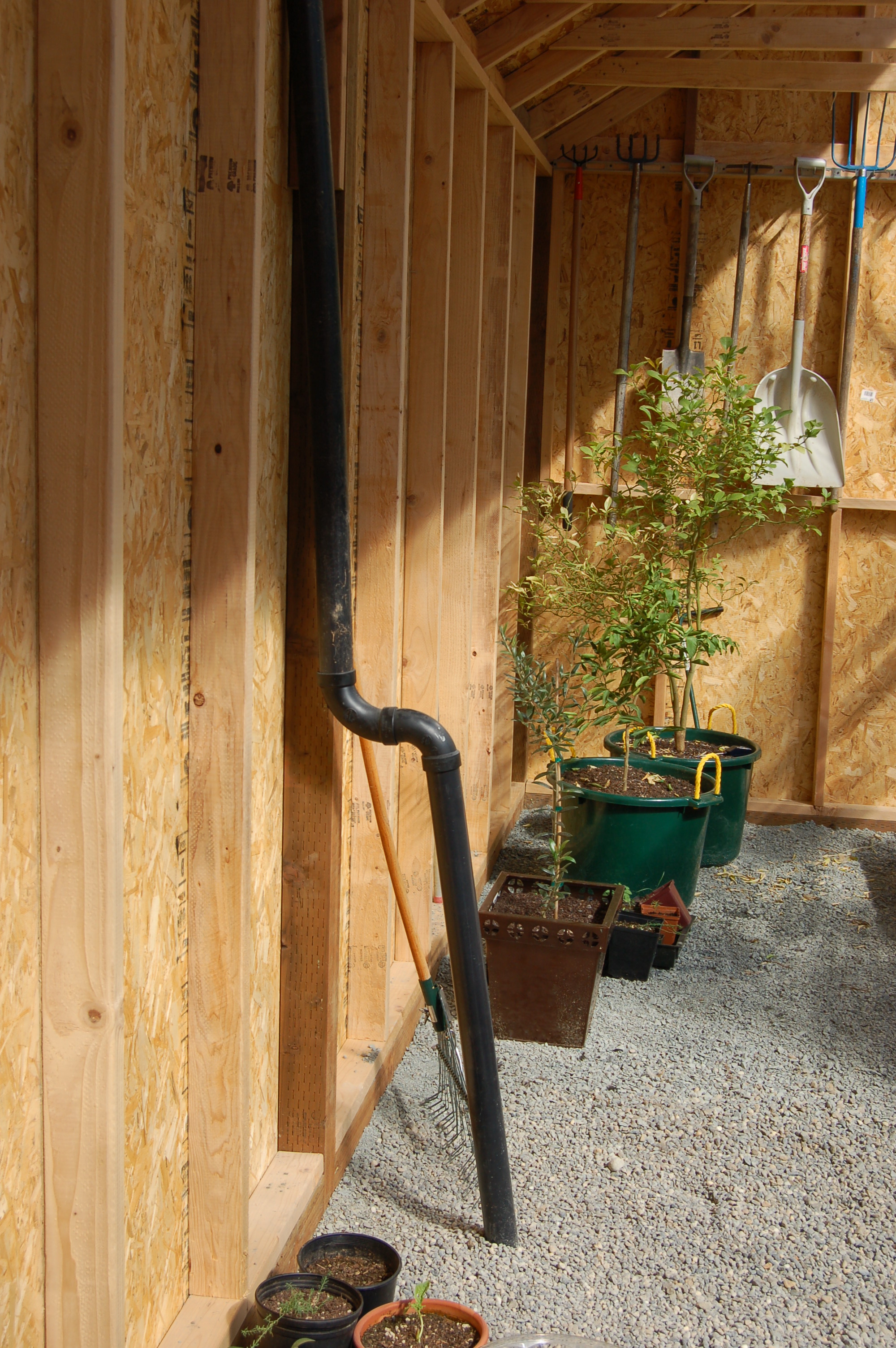

When we had the site prepped for construction, we ask for a pit to be dug so we could set up a heat sink.  A heat sink is a low-tech version of a heat pump.  In a nutshell, the way it works is a small (e.g. 92-100 mm) 12VDC fan is placed inline with a pipe (still need to build the manifold for this – it’s currently sitting on my desk) that extends from the ridge down to the bottom of a 3x3x3′ insulated pit filled with pea gravel.  The fan is designed to blow downward, sucking hot (or warm in the dead of winter) air from the top of the greenhouse and blowing it into the bottom of the pit.  The warm air heats up the pea gravel during the day providing the heat sink.  During the night, the fan continues to blow and the cooler air passes through the heated pea gravel and extracts the heat, blowing it into the greenhouse.  At least that’s how it is supposed to work.  We’ll see if theory matches practice.

We chose an approximate 60-degree angle for the polycarbonate roof to provide an optimal sunlight angle (per the U of M article, it should be latitude + 10 degrees).  We had to fudge a bit since we didn’t want a 3′ cripple wall, so the actual angle is closer to 57 degrees.  Not a big deal as the greenhouse gets plenty warm right now (in fact, it is almost too warm when I’m in there assembling raised beds or shoveling gravel or filling the raised beds).

Still on the to-do list:  adding gutters on both eaves for rainwater management and collection, adding rigid foam insulation to the interior walls, filling the three 4×6′ raised beds with topsoil + compost, adding additional storage on the east wall (tools) and north wall (shelving), adding eave venting, heat-sink venting and electrical (solar panel + inverter + battery bank).  Not a lot <cringe>.

Sandy and Derek
